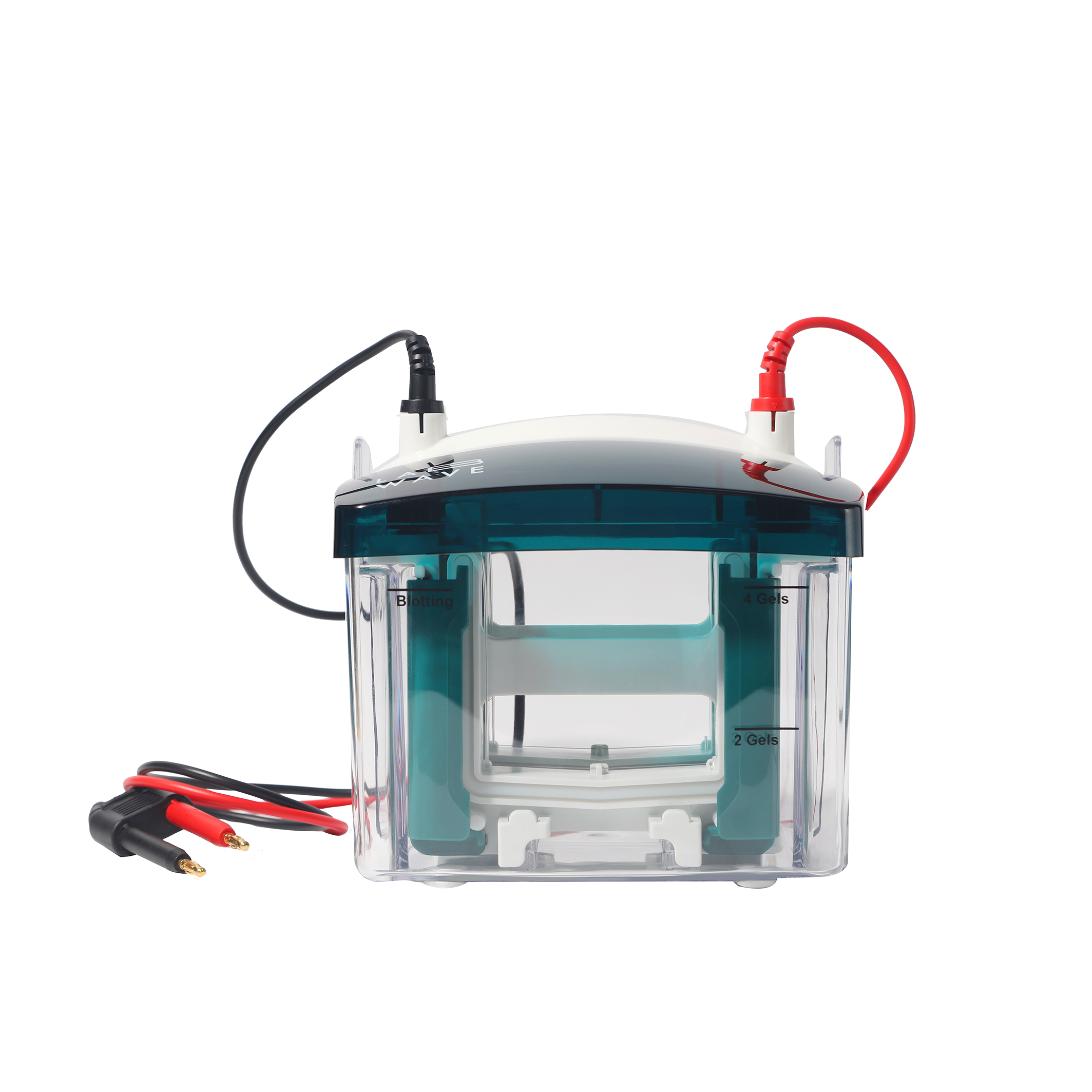

Protein Vertical Electrophoresis Cell

Vertical Gel Electrophoresis System

High-performance vertical gel electrophoresis system designed for protein electrophoresis, SDS-PAGE analysis, gel casting, and routine molecular biology workflows. The modular multi-gel design supports efficient simultaneous electrophoresis and flexible gel preparation for high-throughput laboratory applications.

Suitable for research laboratories, biotechnology facilities, academic laboratories, molecular biology laboratories, and protein analysis workflows.

High-Throughput Multi-Gel Design

Accommodates 1–4 hand-cast or pre-cast gels and completes electrophoresis for up to four small gels within approximately one hour.

Ultra-Flat Glass Support System

Unique ultra-flat casting frame support prevents glass plate slipping while ensuring stable and precise gel casting alignment.

Leak-Resistant Press-Lock Structure

Press-lock casting base and wedge-shaped side clip design help prevent gel leakage caused by improper alignment or spring fatigue.

Full-Panel Backlit Casting Design

Integrated backlit panel clearly visualizes separating and stacking gel casting processes for convenient operation monitoring.

Independent Gel Casting Bases

Includes four independent gel casting bases for flexible bench placement and simultaneous multi-gel preparation.

Air-Isolation Comb Design

Combs with edge teeth and built-in ridges help isolate gels from air exposure and support stable polymerization performance.

Durable Reinforced Glass Plates

Edge-sealing strips reinforce glass plates, improving alignment precision and resistance to accidental breakage.

High-Purity Platinum Electrodes

Platinum electrodes with 99.99% purity provide stable electrophoresis conductivity and long operational lifespan.

Technical Specifications

Property Value
Product Type Vertical Gel Electrophoresis System
Application Protein electrophoresis, SDS-PAGE, gel casting, molecular biology workflows
Gel Capacity 1–4 hand-cast or pre-cast gels
Electrophoresis Throughput Up to 4 small gels within 1 hour
Gel Casting Base Press-lock leak-resistant design
Electrophoresis Core Clips Parallel sliding wedge-shaped side clips
Glass Plate Alignment Cam-style precision alignment frame
Comb Design Edge-tooth comb with air-isolation ridges
Glass Plate Identification Thickness and well count markings
Electrode Material 99.99% purity platinum
Electrode Diameter 0.25 mm
Included Accessories 4 casting bases, centrifuge tube rack, glass plate holder
Warranty Five-year free warranty

Included Accessories

Accessory Description
Independent Gel Casting Bases 4 units for simultaneous gel preparation
Glass Plate Holder Holds up to 14 glass plates
Multi-Purpose Tube Rack 100-well centrifuge tube rack with multiple well sizes
Electrophoresis Combs Marked with thickness and well count
Platinum Electrodes 99.99% purity platinum electrodes

Typical Applications

  • SDS-PAGE protein electrophoresis
  • Protein separation and analysis
  • Molecular biology laboratory workflows
  • Routine gel electrophoresis applications
  • Academic and biotechnology research
  • Protein expression analysis
  • High-throughput electrophoresis workflows

FAQ

How many gels can the system run simultaneously?

The system supports 1 to 4 hand-cast or pre-cast gels and can complete electrophoresis for up to four small gels within approximately one hour.

How does the system help prevent gel leakage?

The press-lock casting base, wedge-shaped side clips, precision glass alignment system, and edge-sealing strips work together to minimize leakage risks during gel casting and electrophoresis.

What is the advantage of the backlit casting frame?

The full-panel backlit design clearly visualizes the separating and stacking gel casting process, improving operational convenience and accuracy.

What material are the electrodes made from?

The system uses 99.99% purity platinum electrodes with a diameter of 0.25 mm for reliable conductivity and long operational lifespan.

What accessories are included with the system?

The system includes four independent casting bases, a 100-well centrifuge tube rack, a glass plate holder for up to 14 plates, and electrophoresis combs with thickness and well-count markings.

Quality & Warranty

Products manufactured in ISO-certified facilities under internationally recognized quality management systems and backed by a five-year free warranty.
